Is diode a semiconductor?
What is silicon diode?
A Silicon Diode is a semiconductor that has positive and negative charge polarity and can allow electric current to flow in one direction and restrict it in another direction. A Germanium diode works in the same way but has a low forward voltage, making it a low power loss and efficient diode.
What are the differences between germanium and silicon diodes? The main difference between silicon and germanium diodes is the voltage required to turn the diode on (or be “forward biased”. Silicon diodes require 0.7 volts to be forward biased, but germanium diodes require only 0. This may interest you : How is P-type material formed?.3 volts to be forward biased.
What is the voltage for a silicon diode?
Silicon diodes have a forward voltage of about 0.7 volts. Germanium diodes have a starting voltage of around 0. Read also : What is the principle of semiconductor?.3 volts. The maximum reverse bias voltage a diode can withstand without “breaking down” is called the Peak Inverse Voltage, or PIV rating.
What is the voltage across silicon diode at knee voltage?
A silicon diode has a threshold voltage “knee voltage” value of 0.7V.
What is the minimum voltage required for a silicon diode to operate?
A minimum threshold voltage is required to overcome the depletion region, which is a significant 0.7 volts for most silicon diodes. In addition, a reverse voltage induces a small amount of current through the diode known as leakage current which is essentially insignificant for most purposes.
What are the characteristics of a silicon diode?
There are two terminals: positive (anode) and negative (cathode). Often used as a rectifier, it is a device that converts AC to DC with current flowing in one direction. Read also : What are the properties of semiconductor?. Rectifiers can be found in electronic components such as radios, DC power supplies and high voltage transmitters.
What is VI characteristics of silicon diode?
V-I characteristics on the front of the silicon diode When the external voltage applied to the silicon diode reaches 0.7 volts, the p-n junction diode starts to allow a large electric current through it. At this point, a small increase in voltage rapidly increases the electric current.
What are the common functions of silicon diode?
The most common function of a diode is to allow electric current to flow in one direction (called the diode’s forward direction), and block it in the other direction (the reverse direction). So, the diode can be seen as an electronic version of a check valve.
Is semiconductor and diode same?
A diode is a semiconductor device composed primarily of silicon components. The anode, which is inherently positive and has a lot of holes, is located next to the cathode, which is negatively charged and has a lot of electrons. A depletion region forms at this point, with no holes or electrons.
Is a diode a conductor? A diode is a one-way conductor. It has two terminals, the anode or positive terminal and the cathode or negative terminal. Ideally, a diode will pass current when its anode is made more positive than its cathode, but will prevent current flow when its anode is made more negative than its cathode.
What type of semiconductor is diode?
A semiconductor diode, the most common type used today, is a crystalline piece of semiconductor material with a pan junction connected to two electrical terminals. Semiconductor diodes were the first semiconductor electronic devices.
Is a diode a simple semiconductor?
Diodes are basic one-way semiconductor devices that will only allow current to flow through them in one direction only, acting more like a one-way electrical valve, (Forward Biased Condition).

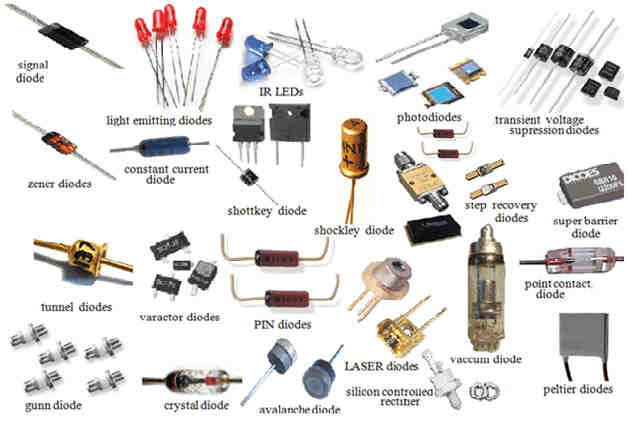

What is diode and its type?
A diode is a two-terminal electrical device. A diode is made from a semiconductor, often silicon but sometimes germanium. There are different types of diodes, but the ones discussed here are Zener, Rectifier, Schottky, Transient Voltage Suppressor, Thyristor, Silicon Control Rectifier, and TRIAC.
Why semi conductor is used as a diode?
In a p-n junction diode, the zero bias condition can be obtained when no external voltage is seen to be applied to the p-n junction diode. Ans. A semiconductor usually lies between the conductor and the insulator. It helps to manage and control the flow of current in any particular electronic instrument or equipment.
Why semiconductors are used in diode?
As the free electrons are negative charge carriers, these holes in the structure are positive charge carriers. A material doped in this way is called a P-type semiconductor. Placing P-type and N-type materials next to each other in a circuit creates a PN junction, and makes a useful device called a diode.
Why can a semiconductor diode be used as a rectifier?

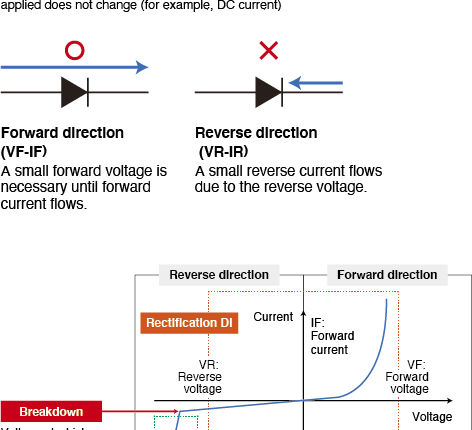

The P-N junction is a rectifier diode because it has asymmetrical current/voltage characteristics, allowing current to flow in one direction. An example is converting alternating current to direct current. Figure 1 shows the I-V characteristic for a silicon P-N junction.

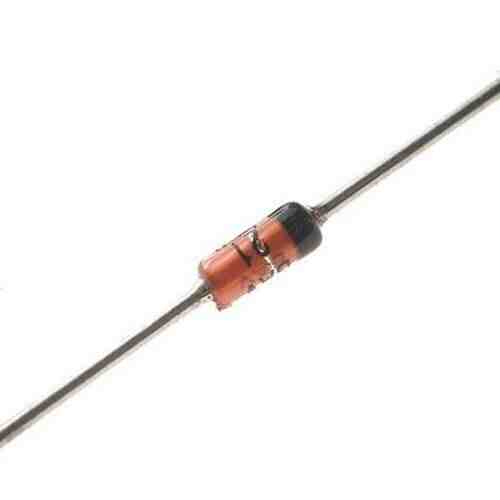

How does a diode looks like?
What is a Diode. A diode looks something like the image above and comes in different sizes. They usually have a black cylindrical body with a stripe at one end as well as some leads coming out to allow us to connect it into a circuit.
What does a diode do? A diode is a semiconductor device that basically acts as a one-way switch for current. It allows the current to flow easily in one direction, but severely restricts the current from flowing in the other direction.

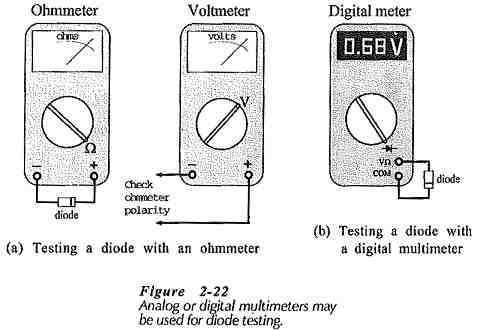

How can you identify a diode?
Take, for example, a diode with brown, orange, and white bands at one terminal and figure out its ID number. With brown a “1,” orange a “3,” and white a “9,” then the device would be identified as a type 139 semiconductor diode, or more specifically a 1N139.
How can you identify a diode by looking at the physical shape of a diode?
How can you identify a diode by looking at its physical shape? The larger area is type P, and the smaller area is type N. The device has two legs and is a two terminal device. The shape indicates a zener diode.
How do you identify a simple diode?
To identify these you will need to look at the number… Look for both legs under:
- Light Emitting Diode – Emits colored light based on the materials used internally.
- Photodiode – Captures photons to generate current.
- Infrared – Emits light at the infrared spectrum.
- Varactor – An inverting diode used as a capacitor.
What is diode with example?
The definition of a diode is an electronic device with two transmission terminals that allows an electric current to flow in one direction while blocking the current in the other direction. An example of a diode is a light emitting diode, LED. noun 2. 1.
What are the 3 main uses of diodes?
List three functions of a diode. LEDs are used in sensors and laser devices. Zener diodes are used as voltage regulators. Diode helps to perform digital logic.
What is diode principle?
Its working principle is that when the diode is reverse biased, small leakage currents pass through the diode, when the reverse voltage is further increased the leakage current increases fast enough to break a few covalent bonds a break within the junction further breaks these new charge carriers. the rest…
What is the symbol of diode?
The basic schematic symbol for a diode looks like an arrowhead pointing in the direction of conventional current from its Anode (A) terminal to its Cathode (K) terminal. The schematic symbol of a diode also shows that if it is forward biased, current will flow in the direction of the arrows.
What is diode circle?
The diode is a semiconductor device that allows current to flow in one direction only. It has two electrodes called anode or plate and cathode, it uses the rectifying properties of the union between P and N type semiconductor materials. This symbol can be represented inside a circle.
How do you read a diode symbol?
A diode is shown on schematics with a symbol (ââ·|â) which shows how the diode should be installed. An arrow points at a vertical bar, from which a line continues. The arrow indicates the positive side of the diode, and the vertical bar indicates the negative side.
What are examples of semiconductors?
Examples of Semiconductors: Gallium arsenide, germanium, and silicon are some of the most commonly used semiconductors. Silicon is used in the manufacture of electronic circuits and Gallium arsenide is used in solar cells, laser diodes, etc.
What are the two types of semiconductors? Semiconductors are divided into two categories: Intrinsic Semiconductor. Extrinsic semiconductor.
What are the 2 best examples of semiconductor materials?
The most commonly used semiconductor materials are silicon, germanium, and gallium arsenide.
Which semiconductor material is most used?
The material most often used in semiconductors is Silicon (chemical symbol = Si). Silicon is the second most abundant element on earth after oxygen.
Which one is an example of semiconductor?
Elemental semiconductors include antimony, arsenic, boron, carbon, germanium, selenium, silicon, sulfur and tellurium. The best known of these is silicon, which forms the basis of most ICs. Common semiconductor compounds include gallium arsenide, indium antiamide and the oxides of most metals.
What are some examples of semiconductors in everyday life?
CPUs that run personal computers are also made with semiconductors. Many digital consumer products in daily life such as mobile phones / smartphones, digital cameras, televisions, washing machines, refrigerators and LED bulbs also use semiconductors.
What is the most common semiconductor material in use today?
Silicon (Si) is the most common semiconductor material used today; however, other types of semiconductor materials are also available. The number of valence shell electrons in a semiconductor material places this material category between insulators (poor electrical conductors) and metals (good semiconductors).
Where are semiconductors most used?
Semiconductors are used to manufacture various types of electronic devices, including diodes, transistors and integrated circuits.
What is the most common semiconductor?
The material most often used in semiconductors is Silicon (chemical symbol = Si). Silicon is the second most abundant element on earth after oxygen. Most Silicon is found in soil and rock, but silicon is also found in natural water, trees and plants.
Why is silicon The most common semiconductor?
Silicon is usually found worse with other elements. Silicon elements are able to bind atoms tightly and in complex arrangements. The abundance of silicon makes it cheap and easy to find. This is the main reason why silicon is the most widely used semiconductor material.
Which is the most commonly used semiconductor Why?
Silicon is the most widely used type of semiconductor material. Its major advantage is that it is easy to make and provides good general electrical and mechanical properties.
