What is the function of a vacuum tube?
A vacuum tube, also called a valve in British English, is an electronic device used in many older models of radios, televisions and amplifiers to control the flow of electrical current. The cathode heats up, like in a light bulb, so it will emit electrons. See the article : What is p-type semiconductor?. This is called thermoemission.
How are vacuum tubes used in computers? It is used as a switch, amplifier or display (CRT). Used as on/off switches, vacuum tubes enabled the first computers to perform digital calculations. Although tubes have made a comeback in high-end stereo components, they have long since been abandoned for televisions and computer monitors.
How does a vacuum tube works?
In most vacuum tubes, the cylindrical cathode is heated by a filament (not too different from that of a light bulb), causing the cathode to emit negative electrons that are attracted to the positively charged anode, causing electrical current to flow to and from the anode (remember, current goes to . .. See the article : What is the difference between organic and inorganic semiconductor?.
How do vacuum valves work?
A vacuum valve is a device placed in the supply or ventilation line of a vacuum furnace, the purpose of which is to isolate the vacuum chamber or direct the flow of gas into the vacuum vessel. These valves can be operated manually, pneumatically, electropneumatically, electrically or electromagnetically.
How do vacuum tubes amplify sound?
The vacuum tube amplifies because of its thermionic control characteristics. Vacuum tubes modulate the flow of electrons flowing from the tube cathode to the tube plate by applying a control voltage to the tube grid.
How does vacuum tubes work in the first generation computers?
First generation computers used vacuum tubes as the basic components for memory and circuits for the CPU (Central Processing Unit). These tubes, like electric bulbs, produced a lot of heat and the installations were often connected. See the article : How is P-type material formed?.
How do vacuum computers work?
The basic principle of operation of a vacuum tube is a phenomenon called thermoemission. It works like this: you heat the metal, and the thermal energy ejects some electrons. … When the cathode is heated, and a positive voltage is applied to the anode, electrons can flow from the cathode to the anode.
How did vacuum tubes work?
All modern vacuum tubes are based on the Audion concept – a heated “cathode” boils electrons into a vacuum; pass through a grid (or many grids), which control the flow of electrons; the electrons then hit the anode (plate) and are absorbed.
Do computers have vacuum tubes?
Five Generations of Computers: Vacuum tubes were used in computers until the mid-1950s, but today they have largely been replaced by more modern technologies.
How many vacuum tubes are used in computer?
It was designed using over 5,000 vacuum tubes. It was often used in tasks such as election forecasting, actuarial spreadsheet calculations, and accounting.
What computers use vacuum tubes?
| Computer | Date | Units |
|---|---|---|
| AtanasoffâBerry computer | in 1942 | 1 |
| Colossus | in 1943 | 10 |
| ENIAC | in 1945 | 1 |
| Manchester Baby | in 1948 | 1 |

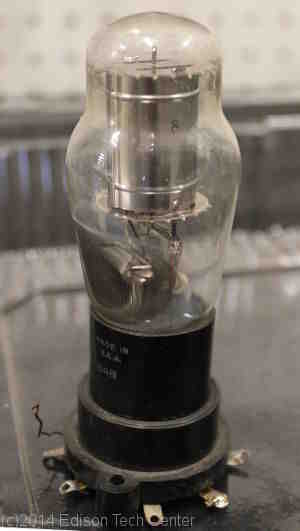

Why do electrons cross the gap in a vacuum tube?
Why do electrons pass through a gap in a vacuum tube? Because the negatively charged electrons are attracted to the positively charged plate.
What is the direction of electron flow in a triode with a vacuum tube? In the case of a vacuum tube diode, current can only flow from anode to cathode (although electrons flow from cathode to anode, remember that the direction of conventional current is opposite to the actual movement of electrons… a boring piece of electrical history).
How does a vacuum tube work?
In most vacuum tubes, the cylindrical cathode is heated by a filament (not too different from that of a light bulb), causing the cathode to emit negative electrons that are attracted to the positively charged anode, causing electrical current to flow to and from the anode (remember, current goes to . ..
What is the purpose of vacuum tube?
Among the common applications of vacuum tubes are the amplification of weak current, the rectification of alternating current (AC) to direct current (DC), the generation of oscillating radio frequency (RF) power for radio and radar, and the creation of images on a television screen or computer monitor.
What is vacuum tube and how does it work?
When hot, the filament releases electrons into the vacuum, a process called thermoemission, originally known as the Edison effect. The other electrode, the anode or plate, will attract these electrons if it is at a more positive voltage. The result is a net flow of electrons from the filament to the plate.
What advantage is gained by removing air from the space in which electrons will be traveling?
Electron emission eventually leads to a decrease in electron energy. Therefore, the removal of air is conducive to the proper collision of electrons.
How does a thermionic valve work?
A type known as a thermoelectric tube or thermoelectric valve uses the thermal emission of electrons from a hot cathode for basic electronic functions such as signal amplification and current rectification.
What were vacuum tubes used for?
Among the common applications of vacuum tubes are the amplification of weak current, the rectification of alternating current (AC) to direct current (DC), the generation of oscillating radio frequency (RF) power for radio and radar, and the creation of images on a television screen or computer monitor.
How does electrons move through a vacuum tube?
Hot, excited electrons have the ability to fly off the cathode into the vacuum. If the plate is more positive than the cathode, these electrons will be attracted to it and current will flow through the tube. So electrons flow from the hot cathode to the plate.
How does current flow through a vacuum tube?
In a CRT, the cathode is heated, which gives the electrons the energy they need to escape from the cathode. The large electric field then accelerates the free electrons through the vacuum and onto the target (screen).
How do electronic vacuum tubes work?
All modern vacuum tubes are based on the Audion concept – a heated “cathode” boils electrons into a vacuum; pass through a grid (or many grids), which control the flow of electrons; the electrons then hit the anode (plate) and are absorbed.

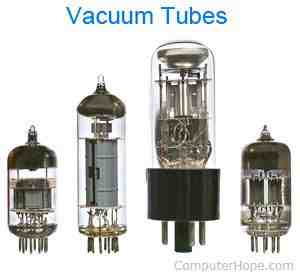

What did semiconductors replace?
Vacuum tubes were originally used in the earliest digital electronic computers in the 1930s and 1940s, before being replaced by transistors composed of semiconductors, which can be manufactured much smaller, enabling today’s computers, smartphones and tablets.
Which semiconductor will replace silicon? Cubic boron arsenide is one of the best semiconductors known to science and could even dethrone silicon as the main component of modern electronics.
What is the replacement for semiconductor?
Alternative semiconductors such as gallium nitride (GaN) and silicon carbide (SiC) cope much better with higher temperatures, meaning they can operate faster, and have begun to replace silicon in critical high-power applications such as amplifiers. Finally, silicon is very poor at transmitting light.
What will replace electronics?
Photonics is one such technology that can take over from electronics and keep us on the path to the Internet of the future with amazing experiences. There is a growing realization that signal processing with electrons will soon be replaced by signal processing with photons.
Is there a better semiconductor than silicon?
A new study, published in the journal Science last month, demonstrated that cubic boron arsenide has a significantly higher mobility for electrons and their positively charged counterparts than silicon, a ubiquitous semiconductor used in electronics and computers.
How did semiconductors change lives?
Because of their role in the production of electronic devices, semiconductors are an important part of our lives. Imagine a life without electronic devices. There would be no smart phones, radios, TVs, computers, video games or advanced medical diagnostic equipment.
Why is semiconductors so important?
Semiconductors are the building blocks of modern computing. They are responsible for powering all our devices, from smartphones and laptops to televisions and cars. Without them, we would not have the technology that makes our lives easier today. They play a role in almost every electronic device you can think of.
Why was a semiconductor an important development?
Semiconductor chips replaced tubes, driving machines faster, cheaper and more efficiently. Advances in design and size have led to light and sleek modern phones and smart devices across a range of industries.
What were replaced by transistors?
Transistors made of semiconductors replaced tubes in computer construction. By replacing bulky and unreliable vacuum tubes with transistors, computers can now perform the same functions, using less power and space. From Mary Bellis, Your Guide to Inventors.
What type of component did the transistor eventually replace?
The transistor replaced the vacuum tube triode, also called a (thermionic) valve, which was much larger and used significantly more energy to operate. The first transistor was successfully demonstrated on December 23, 1947 at Bell Laboratories in Murray Hill, New Jersey.
When was transistor replaced?
During the 1960s and 1970s, transistors became smaller and smaller. Many of the large mainframe computers that were needed to meet the computing needs of a large company have been replaced by minicomputers (“mini-” which became a pop culture prefix in the 1960s – eg “mini skirt”).
What is the advantage of electron tubes over semiconductor?
In some cases, the performance and reliability of electron tube technology is far superior. In the areas of high-power and high-speed switching circuits, specialized tubes such as hydrogen thyratrons and krytrons can switch far greater amounts of current, far faster than any semiconductor device designed to date.
What are the advantages of semiconductor rectifiers compared to electron tubes that perform the same functions? Unlike vacuum tubes, semiconductors are shock resistant. Moreover, they are smaller in size, take up less space and consume less energy. Compared to vacuum tubes, semiconductors are extremely sensitive to temperature and radiation. Semiconductors are cheaper than vacuum diodes and have an unlimited lifetime.
What is the advantage of semiconductor device?
Advantages of Semiconductor Devices Semiconductor devices require low voltage operation compared to vacuum tubes. Because of their small dimensions, circuits that include semiconductor elements are very compact. Semiconductor devices are shock resistant. Semiconductor devices are cheaper compared to vacuum tubes.
What are the benefits of semiconductor chip?
Advantages of semiconductor elements: Semiconductor devices are resistant to shocks. The semiconductor device is cheaper compared to vacuum tubes. A semiconductor device has an almost unlimited lifetime. The semiconductor device has a small size, so the circuits that include the devices are very compact.
What are the applications of semiconductor?
Applications of semiconductors
- Consumer electronics: Mobile phones, laptops, game consoles, microwave ovens and refrigerators all work using semiconductor components such as integrated chips, diodes and transistors. …
- Embedded Systems: Embedded systems are small computers that form part of a larger machine.
What are the advantages and disadvantages of semiconductor?
Semiconductor devices are much cheaper and low cost. power supply devices. Disadvantages: 1. Semiconductor devices are very sensitive to temperature changes, while vacuum tubes are less sensitive.
Why do we need waveguides?
Waveguides are used to direct and propagate electromagnetic waves from one point to another. They are generally used to transmit high-frequency waves such as microwaves, radio waves, infrared waves, etc. For low-frequency waves that are less than 1 MHz, parallel transmission lines or coaxial cables are used.
What are waveguides made of?
Waveguide Materials Typically, a waveguide is made of brass, copper, silver, aluminum, or any metal that has a low volume resistivity. It is possible to use metals with poor conductivity characteristics, if the inner walls are properly coated. It is even possible to make a plastic waveguide!
Why semiconductors are better than vacuum tubes?
They give better performance than a vacuum tube. This is because semiconductor devices conduct electricity in the solid state, not in the thermionic state, as is the case in a vacuum tube. Semiconductors can be used to make individual devices or integrated circuit (IC) chips.
